Product Detail
E2-9 Nesting Work Center
DETAILS

If you are looking for a machine for nested-based manufacturing but your choices are limited by budget, then this E2 NESTING will be your perfect investment for great growth.

The adoption of the world’s top-grade components as a result of our constant pursuit of quality means you can spend less money but get bigger value in one compact package.

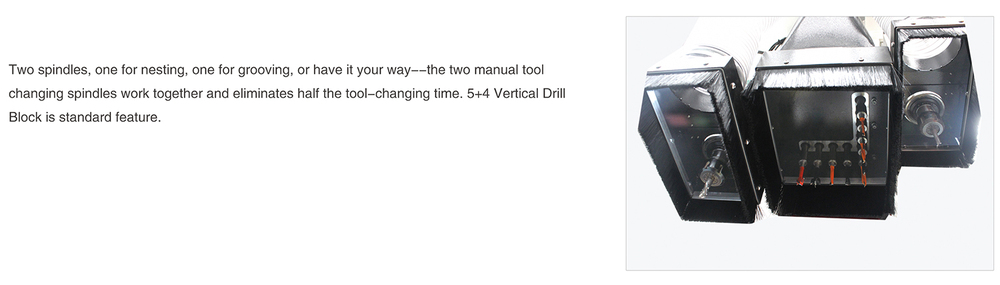

Equipped with two spindles, this machine allows you to carry out cutting and grooving without having to change tools. It also carries a drill bank that will give you the versatility for your work.

When combined with Cabinet Vision Advanced to optimize the machining process, this machine

marries productivity and flexibility, enabling you to carry out nesting and drilling in all kinds of shapes and responding to every need.

This machine comes with a pusher/sweeper that pushes the worked pieces off the main work table and cleans the surface at the same time, which allows the operator to remove the pieces with ease and dramatically reduces down time.

Can be used as a stand-alone solution or part of the automatic panel furniture production cell—choose from our range of processing centers to lift your game and remain competitive.

Option: Automatic loading system


Dual-Process Work Center





★All DIMENSIONS SUBJECT TO CHANGE


SERIES
122412302128
Traveling Size
2500*1260*200mm
3050*1260*200mm
2900*1260*200mm
Working Size2440*1220*50mm
3000*1220*50mm
2850*2130*50mm
Table Size2440*1228mm
3000*1228mm
2850*2130mm
Unloading Speed15m/min
TransmissionX/Y Rack and Pinion;Z Ball Screw Drive
Table StructureVacuum Table
Spindle Power
6.0kW/5.5kW
Spindle Speed
18000r/min
Traveling Speed
40m/min
Working Speed
18m/min
Driving System
Yaskawa
Voltage
AC380/3PH/50HZ
Controller
Syntec



Production Facility
In-House Machining Facility
Quality Control & Testing
Pictures taken at Customer’s Factory
