EXCITECH EF588GW-LASER (Side Hole Model) Laser Edgebander

Our equipment features a complete, automated 16-step processing workflow, clearly displayed in diagram form,

covering the entire production process from panel separation to final polishing.

The specific workflow includes: Separation Device → Pre-Milling → Double colors Clean free PUR Gluing →

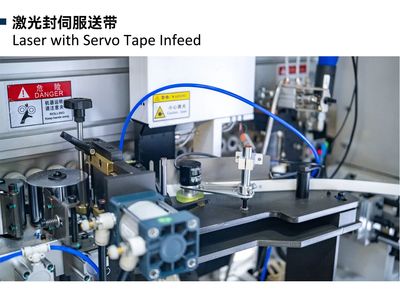

Laser Edgebanding → Servo Belt Feeding → Laminating → Rough Trimming → Servo Fine Trimming → Servo Scraping →

Floating Flat Scraping → End Trimming → Four-motor Tracking → Side Hole Function → Cleaning Device → Polishing 1 → Polishing 2.


The core technical advantages and functional highlights of this equipment are outstanding.

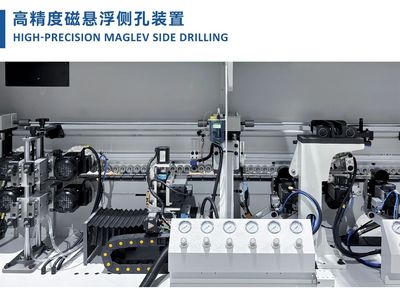

EF588GW is equipped with high-precision magnetic levitation side holes as a standard feature, realizing accurate side drilling.

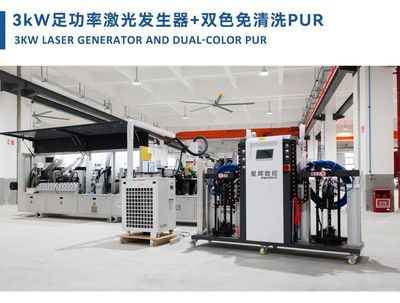

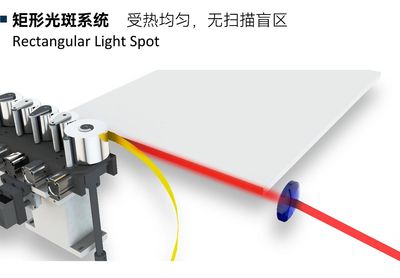

The 3kW rectangular spot laser edgebanding adopts a full-power laser generator, which ensures uniform heating and no scanning blind spots.

The dual-color no-clean PUR glue system greatly improves maintenance convenience, avoiding the trouble of frequent cleaning.


The integrated steel rail structure provides stable and accurate operation guarantee for the whole processing process.

The four-knife tracking function ensures that the edgebanding fits closely with the board, avoiding the problem of edge warping and

improving the overall product quality. For furniture manufacturers pursuing cost performance and production efficiency, this equipment is an ideal intelligent processing solution.
