Product Detail

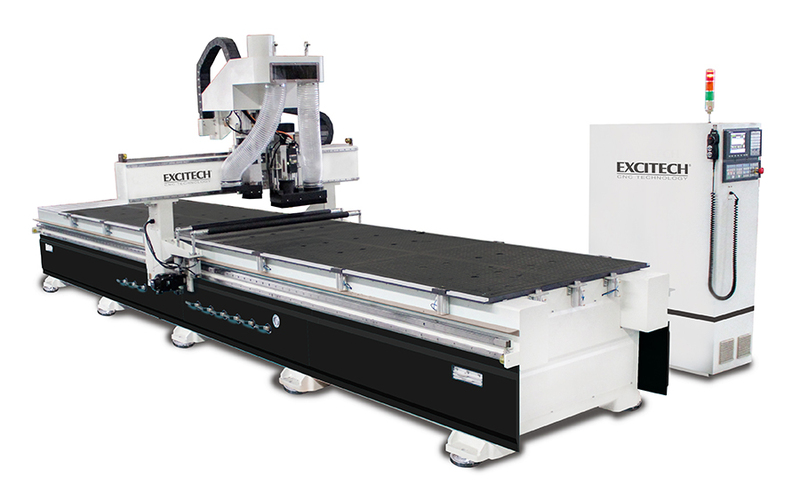

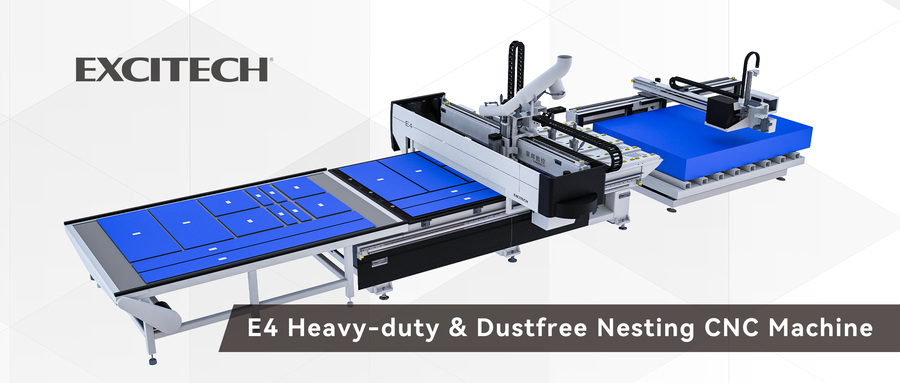

E4 Nesting(with Automatic Pre-Labeling)
E4 Nesting(with Automatic Pre-Labeling)
DETAILS



  • Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

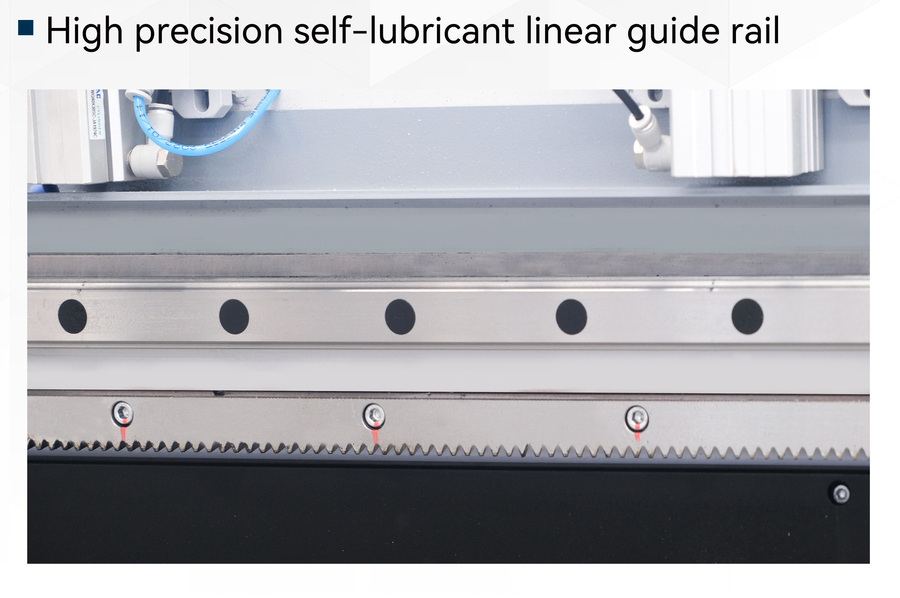

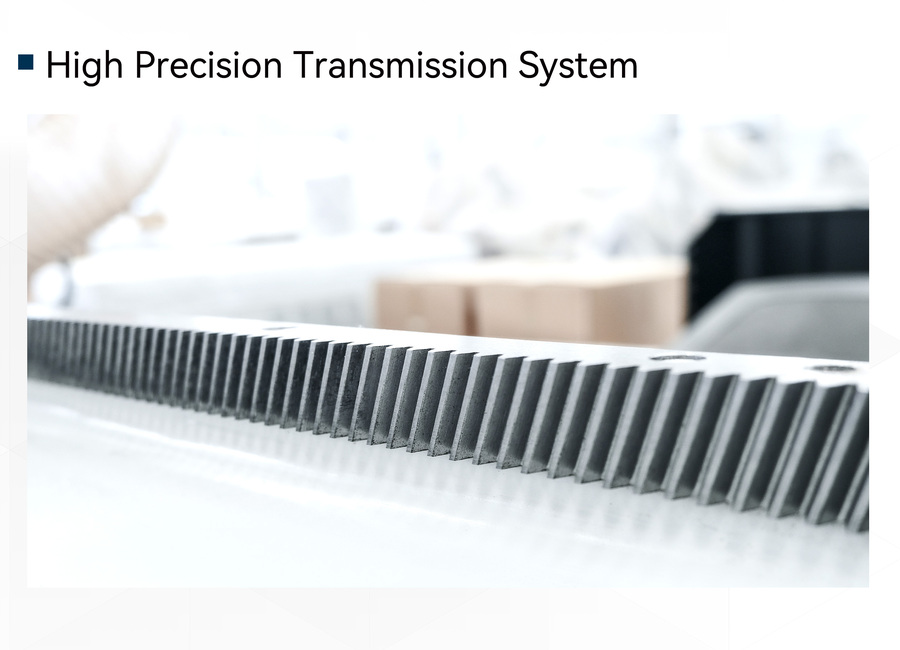

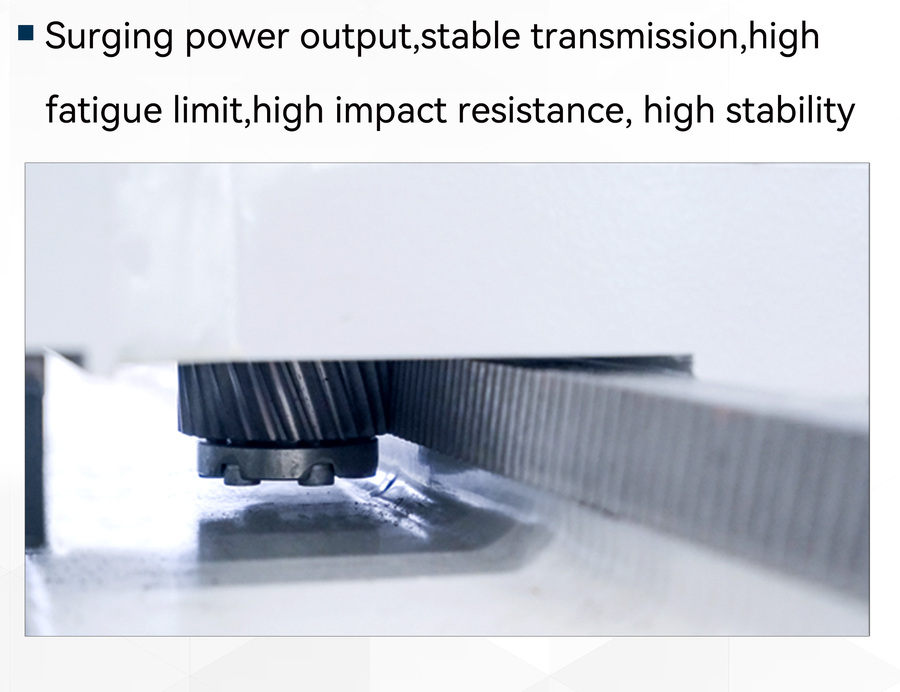

  • World‘s first class components--Italian high-frequency electro spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.

  • Truly versatile--nesting, routering, vertical drilling and engraving all in one.   It is well-suited for panel furniture, office furniture, cabinets production.




——Video——




——High-power Spindle——

To process different materials



——Automatic Pre-labeling——

Automatic Barcode Labeling and Loading System.jpg


——Auto Positioning——

5 sensor switches position the loading height, and double detection ensure more accuracy.JPG


——Automatic Pusher Device——

pusher 1.JPG


——Vacuum Table——

work table2.JPG


——Carousel Tool Magazine——

3 tool magazine.JPG


——High Power Vaccum Pump——


5.5kW becker GERMAN BERKER PUMP.jpg


——Optional 5+4 Drilling Bank——

2 spindle-2.JPG


——Optional Self-lubricate system——

10 self-lubricate system.JPG


——Optional Double Work Zone——

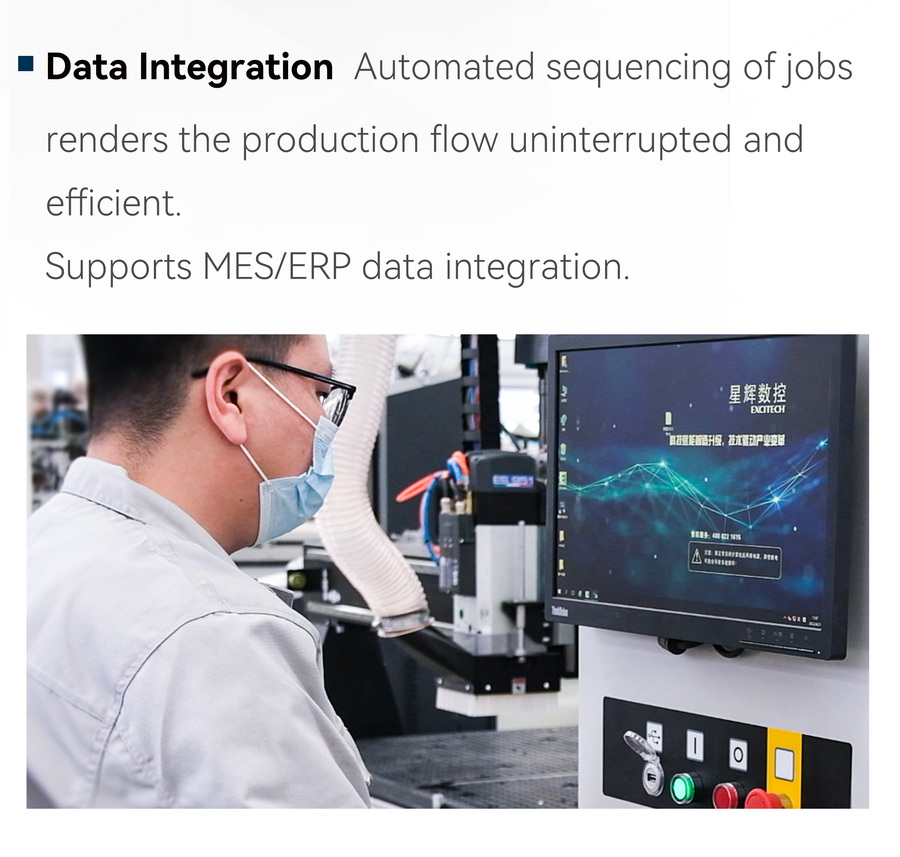

——Software and Hardware Integration Solution——

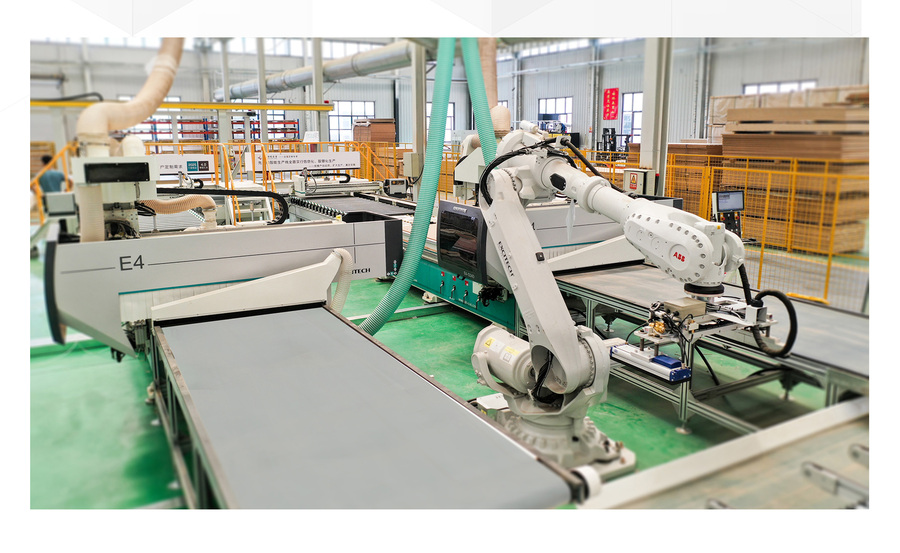

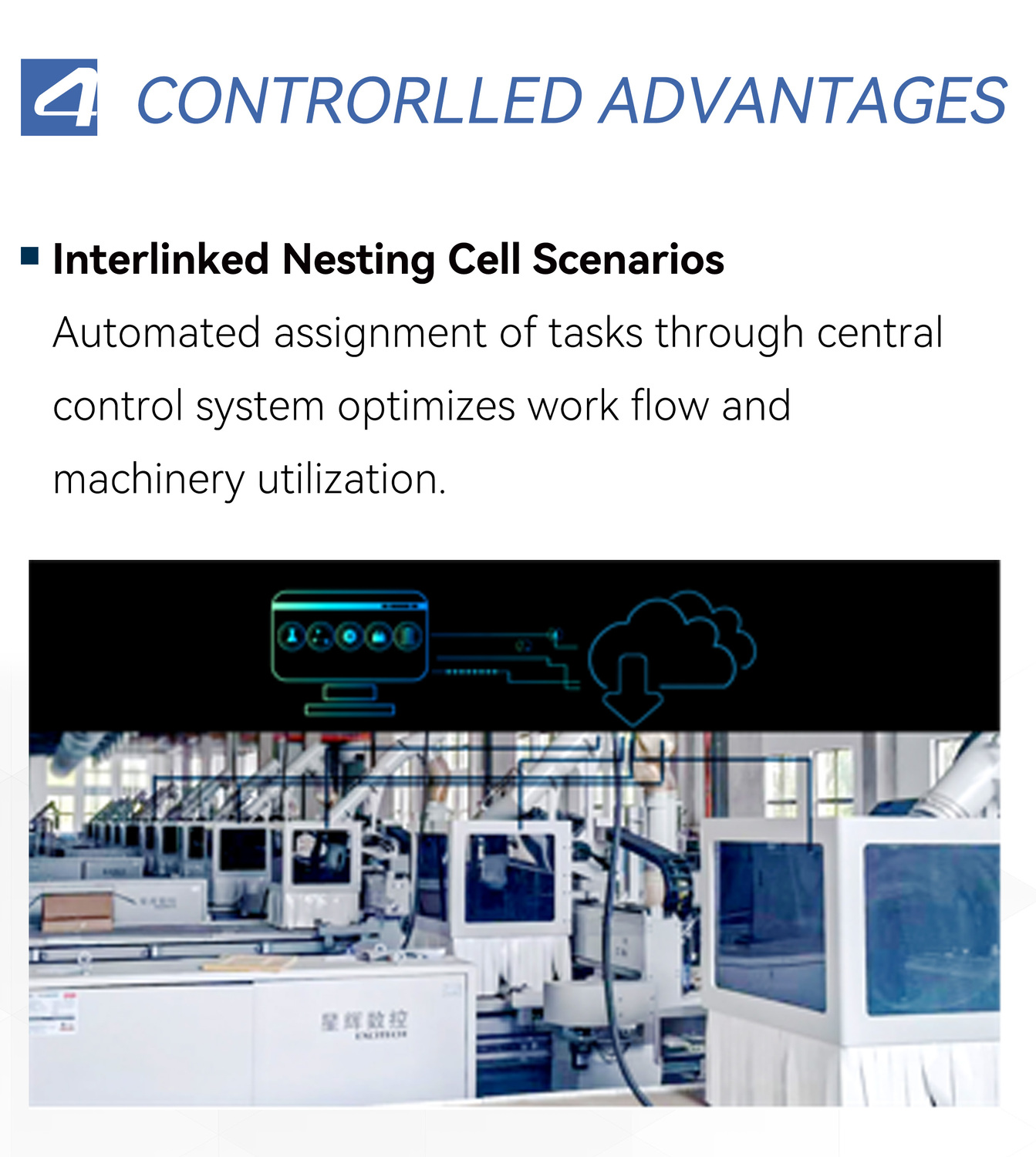

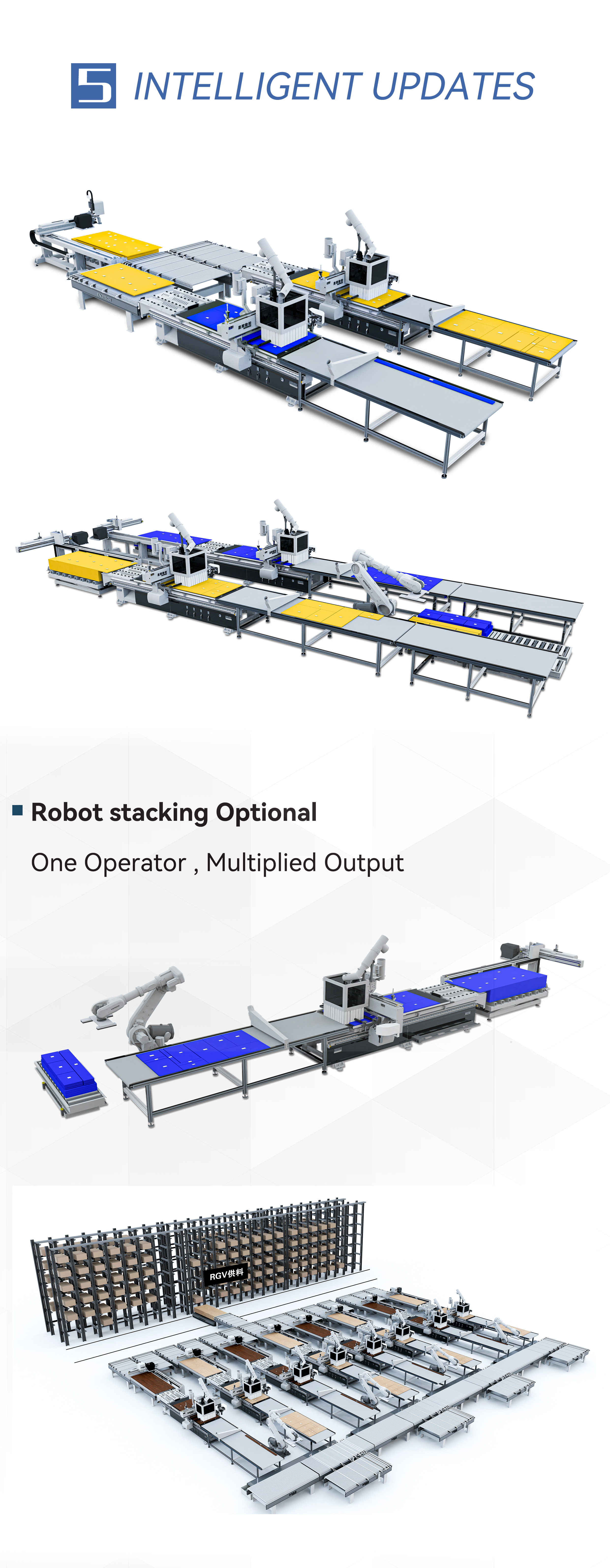

Nesting Cell



What accessories and functions can be used for nesting machine?

——Nesting Series Options——

SeriesE4E3E2-9E2-CE2-4
Cabine & Flat Door
Molded Door//
Auto Tool ChangerStandardStandard/Standard/
High Power SpindleStandardStandard/Standard/
Pre-labeling/
//
Infeed & Outfeed
Double Work Zone
Drill BankStandard/
Compression Roller/
Vertical Saw//


What is the difference between the different structures of nesting machine?

StandardStandard solution,small footprint
Autoloading and unloading with pre-labelingAutomatic pre-labeling,infeed,nesting,outfeed in one cycle to enhance productivity while reducing error
Auto loading and unloadingGreatly helps reduce down time while improving productivity
Double Work ZoneLoading and unloading on one zone without interrupting the work cycle


—— Product Parameter ——

For specific machine configurations, please refer to your technical agreement


Series122412301530153721282138
Traveling Size2500*1260*2003140*1260*2003140*1600*2003700*1600*2002900*2160*2003860*2170*200
Working Size2440*1220*703050*1220*703074*1550*703685*1550*702850*2130*703800*2130*70
Dimension10500*320012600*320011200*350014400*350011700*410014000*4100
Traveling Speed80m/min
Working Speed25mmin
Spindle Info.9kW   24000r/min
Tool MagazineCarousel 8 Sloots
Table StructureVacuum
Power30kW35kW



——Recommended Matching Edgebanding Machine——

EF683GI Edgebanding Machine

Double Gluing+Pre-milling + Corner Trimming



——Recommended Matching Drilling Machine——

EHS1224 Six Sided Drilling Machine

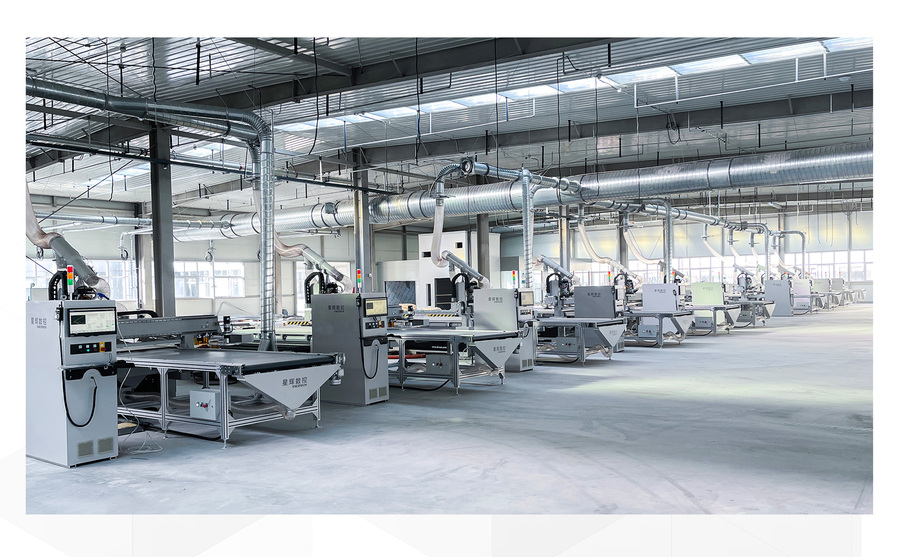

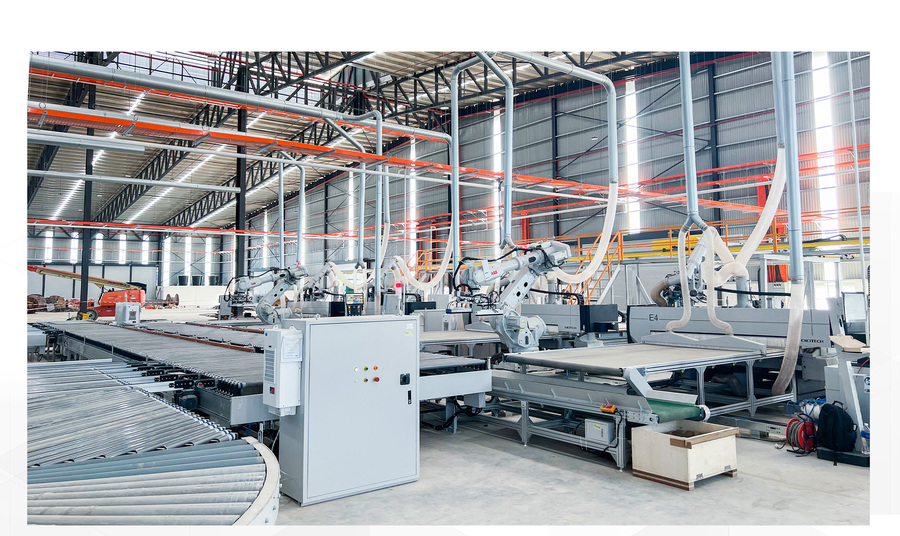

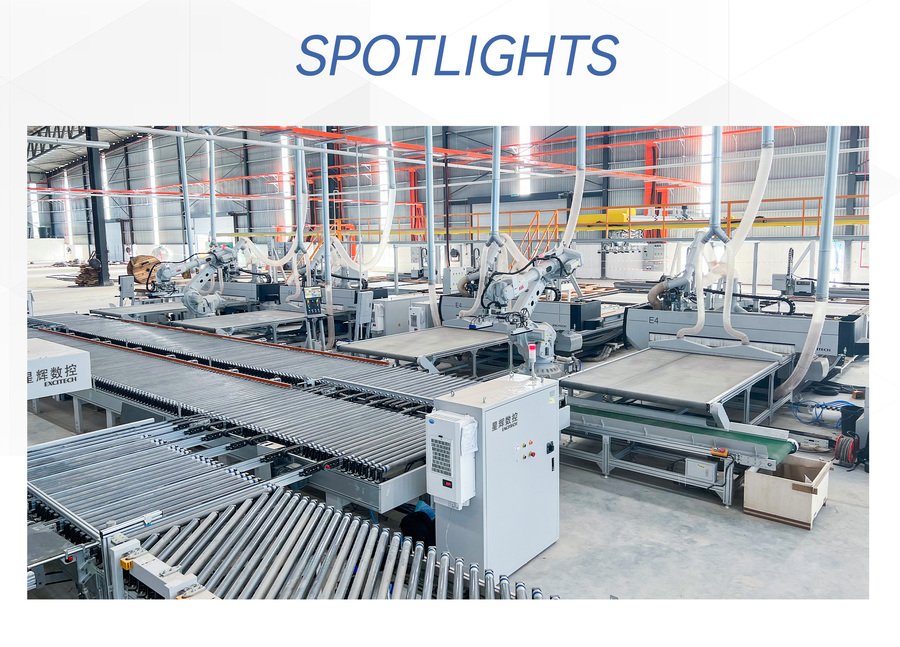

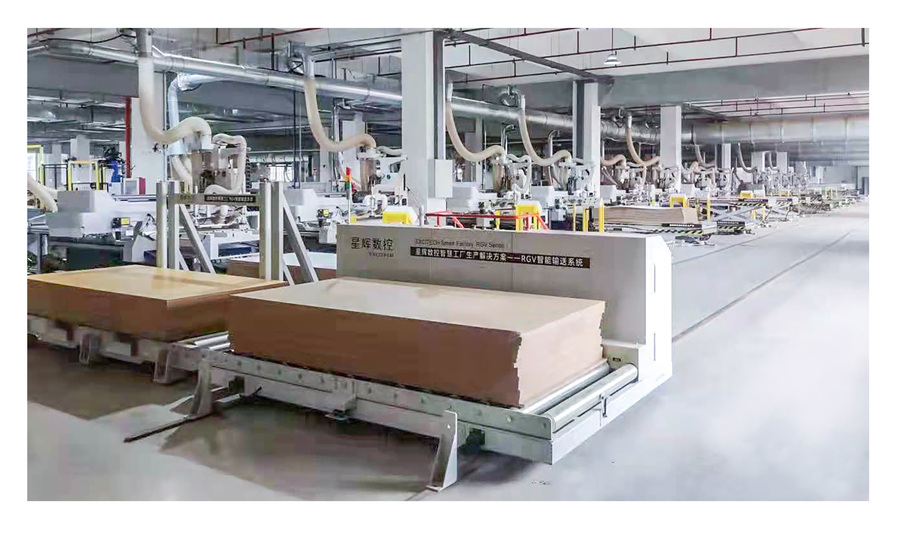

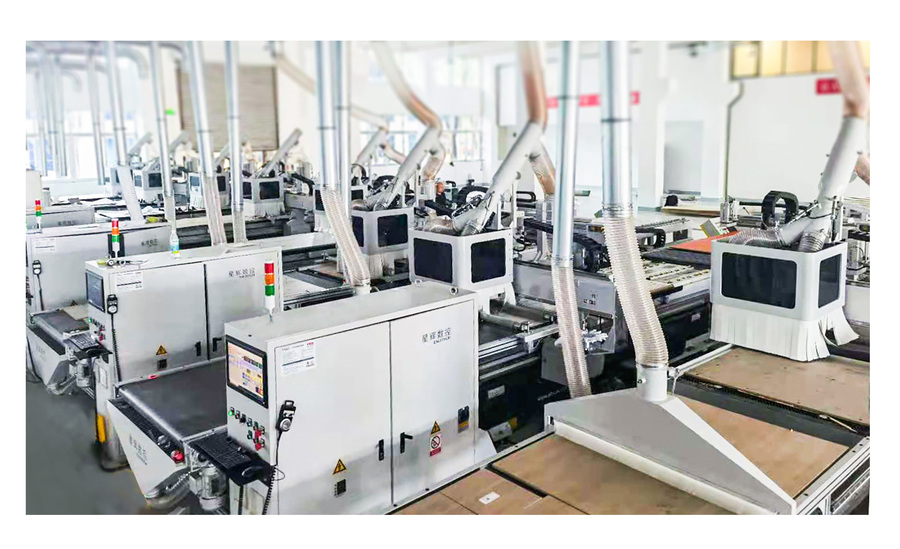

—— Nesting Machine in Our Partners’ Factories ——


—— Deliver,Shipping And Serving ——


Shipping

The cnc nesting machine is packed with anti-rust plastic film for cleaning and damp proofing.

Fasten the cnc nesting machine on the plywood pallet for safety and against clashing.


Port

Qingdao Port/Tianjin Port




—— Service ——

From your first inquiries about our machine to close the deal to installation to technical support and maintenance, our team will be always with you.


Excitech provides 24hr factory support with a team of highly experienced engineers that serve customers and partners around the wold , around the clock.


No matter whether the machine is used in North America or Africa, we can run diagnostics via dial-in on any of our computer-equipped machines for troubleshooting

and correct controller settings to have you running again in a minute.






Production Facility
In-House Machining Facility
Quality Control & Testing
Pictures taken at Customer’s Factory
